Name: DYscan DI9010C-2D Wearable Bluetooth Barcode Scanner for Logistics
Brand: Shenzhen DYscan Technology Co., Ltd
Price: 28.00 USD
Availability: InStock

होम उत्पाद वायरलेस बारकोड स्कैनर

DYscan DI9010C-2D Wearable Bluetooth Barcode Scanner for Logistics

उत्पाद विवरण:

भुगतान & नौवहन नियमों:

न्यूनतम आदेश मात्रा:	1

संपर्क करें

विस्तृत उत्पाद विवरण

प्रतिरूप संख्या।:	DI9010C-2D	इंटरफ़ेस प्रकार:	USB
स्कैन गति:	300 स्कैन/सेकंड	स्कैन तत्व:	सीएमओएस
स्कैनिंग मोड:	ऑटो सेंस, ट्रिगर, निरंतर	DIMENSIONS:	L52.0 मिमी * W35.0 मिमी * H45.4 मिमी
वज़न:	≈35g (केबल के बिना)	प्रकाश स्रोत:	रेड लाइट एलईडी 525 ± 10NM (AIM), 5600K एलईडी (प्रकाश)
CPU:	32-बिट	संकल्प:	640*480
डिकोडिंग गति:	35सीएम/एस	क्षेत्र की गहराई:	35 मिमी ~ 300 मिमी (अलग बारकोड रेंज)
देखने के क्षेत्र:	क्षैतिज 45 ° × ऊर्ध्वाधर 34 °	वायरलेस संचरण:	ब्लूटूथ 30 मीटर (खुली दूरी)
बैटरी की क्षमता:	450MAH
प्रमुखता देना:	wearable Bluetooth barcode scanner , wireless barcode scanner for logistics , DYscan DI9010C-2D barcode scanner

Wearable Finger Bluetooth QR Code Barcode Scanner Reader for Android and Phone

Product Overview

The DI9010C-2D is a high-performance 2D Bluetooth barcode scanner featuring advanced CMOS image recognition technology. This wearable device efficiently reads barcodes from various surfaces including paper, goods, and screens, making it ideal for manufacturing, warehousing, logistics, healthcare, retail, mobile payments, and inventory management applications.

Key Features

Ergonomic wearable design for warehouse and express delivery applications
Reads all mainstream 1D and 2D barcodes (minimum 4mil resolution)
100,000 data storage capacity
Bluetooth 4.2 with intelligent automatic reconnection
Multiple connectivity options: Bluetooth (HID, SPP, BLE), wired
Compatible with PC, mobile phones, and various operating systems

Technical Specifications

Attribute	Value
Model Number	DI9010C-2D
Interface Type	USB
Scan Speed	300 scans/sec
Scan Element Type	CMOS
Scanning Modes	Auto Sense, Trigger, Continuous
Dimensions	52.0mm × 35.0mm × 45.4mm
Weight	≈35g (without cable)
Power Supply	DC5V, 250mA (Average Work)

Performance Parameters

Light Source	Red Light LED 525±10nm (aim), 5600K LED (Lighting)
CPU	32-bit
Resolution	640×480 pixels
Decoding Speed	35CM/S
Depth of Field	35mm~300mm (varies by barcode type)
Scan Modes	Manual, Auto Sense, Continuous
Wireless Range	30m (open distance)
Battery Capacity	450mAh (≥1.5h continuous use)

Environmental Specifications

Operating Temperature	-20ºC to 55ºC
Storage Temperature	-20ºC to 60ºC
Humidity	5% to 95% (non-condensing)
Drop Resistance	1.5m

Supported Barcode Symbologies

1D: Codabar, Code39, Code32, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code93, Code11, Code128, GS1-128, UPC-A, UPC-E, EAN/JAN-8, EAN/JAN-13, ISBN, ISSN, GS1 databar
2D: PDF417, Micro PDF417, QR Code, Micro QR, Data Matrix, Aztec

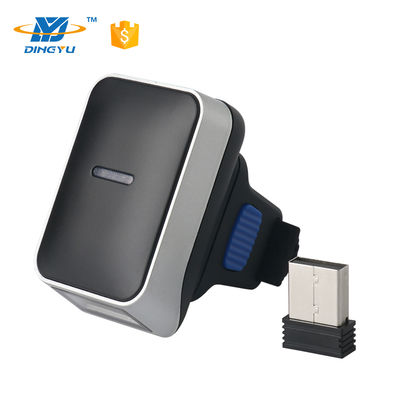

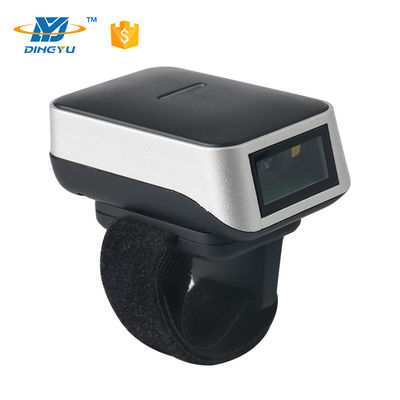

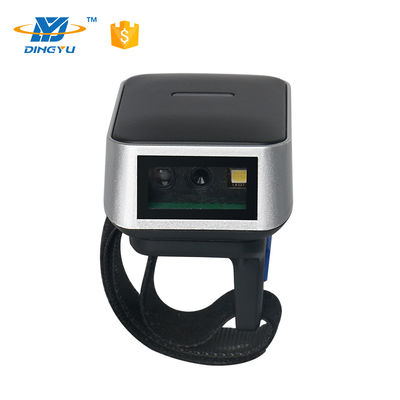

Product Images

Frequently Asked Questions

Q1: How do you ensure the high quality of your barcode scanners?

DYscan: As a professional manufacturer with 18 years of experience, we maintain strict quality control with dedicated testing machines for engine age, wire bend, switch life, and shock resistance. All products pass CE, FCC, and ROHS certifications.

Q2: What is your warranty policy?

DYscan: We offer a 12-month warranty on all our barcode scanners.

Q3: Do I need to install drivers for this scanner?

DYscan: No drivers are required. Our scanners support plug-and-play functionality across Windows, Mac OS, iOS, Linux, UNIX, and Android systems.

Q4: Can you provide OEM/ODM services?

DYscan: Yes, we offer OEM services including custom branding and packaging. Our technical team supports ODM services for specialized requirements.
