Name: DS5520-1D USB Barcode Scanner 300 Scans/Sec 3mil Precision
Brand: Shenzhen DYscan Technology Co., Ltd
Price: 40.00 USD
Availability: InStock

होम उत्पाद -1 डी बारकोड स्कैनर

DS5520-1D USB Barcode Scanner 300 Scans/Sec 3mil Precision

उत्पाद विवरण:

भुगतान & नौवहन नियमों:

न्यूनतम आदेश मात्रा:	1

संपर्क करें

विस्तृत उत्पाद विवरण

प्रतिरूप संख्या।:	स्टैंड के साथ DS5520-1D	इंटरफ़ेस प्रकार:	USB
स्कैन गति:	300 स्कैन/सेकंड	स्कैन तत्व:	सीएमओएस
संकल्प:	2500	सटीकता पढ़ना:	3mil
डिकोडिंग गति:	300 बार/सेकंड	क्षेत्र की गहराई:	20 मिमी ~ 680 मिमी
स्कैन विधा:	मैनुअल, निरंतर, ऑटो सेंस, फ्लैशिंग, कंट्रोल	त्वरित पद्धति:	एलईडी संकेतक, बजर
आयाम:	लंबाई68.4मिमी * चौड़ाई170.6मिमी * ऊंचाई87.6मिमी	वज़न:	.160.8g (केबल के बिना)
बिजली की आपूर्ति:	डीसी 5V@80MA (काम)	परिचालन तापमान:	-20 toC से 50ºC
भंडारण तापमान:	-40 toC से 60ºC
प्रमुखता देना:	USB Barcode Scanner 300 Scans/Sec , 1D Barcode Scanner 3mil Precision , DS5520-1D Barcode Scanner with warranty

DS5220-1D High-Performance 1D Barcode Scanner

Product Overview

The DS5220-1D is a professional-grade 1D barcode scanner featuring advanced CCD image recognition technology. Designed for industrial and commercial applications, it delivers reliable performance across various environments and media types.

Key Features

Ergonomic design for comfortable extended use
Comprehensive 1D barcode compatibility
High-speed decoding (300 scans/second)
Multiple scanning modes including auto-sensing
USB interface with plug-and-play functionality
Multi-language and system support

Applications

Ideal for manufacturing, warehousing, logistics, healthcare, retail chains, mobile payments, express delivery, inventory management, food traceability, and asset inventory.

Technical Specifications

Performance Parameters

Scan Type	Linear CCD
Light Source	Visible red light, 625±10nm
CPU	32-bit
Resolution	2500
Reading Precision	≥3mil/0.076mm (PCS90%, Code 39)
Decoding Speed	300 times/second
Depth of Field	20mm~680mm
Scan Modes	Manual, Continuous, Auto Sense, Flashing, Control Command
Prompt Method	LED indicator, buzzer

Physical Parameters

Weight	≈160.8g (without cable)
Dimensions	68.4mm × 170.6mm × 87.6mm
Communication Mode	USB, USB-COM
Power Supply	DC 5V@80mA (work)

Environmental Specifications

Operating Temperature	-20ºC to 50ºC
Storage Temperature	-40ºC to 60ºC
Humidity	5% to 95% (non-condensing)

Supported Symbologies

UPC-A, UPC-E, EAN-8, EAN-13, ISSN, ISBN, Code 128, GS1-128, ISBT 128, Code 39, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Standard 2 of 5 (IATA), Codabar (NW-7), Plessey, MSI Plessey, RSS, China Post, and more.

Included Accessories

USB Cable for connecting to host devices
RS232 Cable with USB supply cable

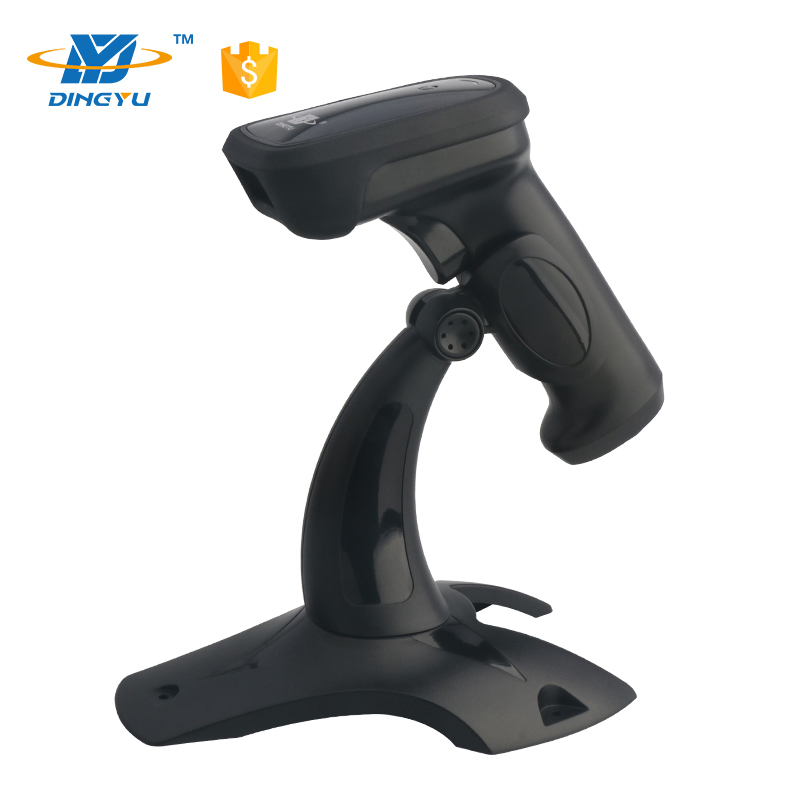

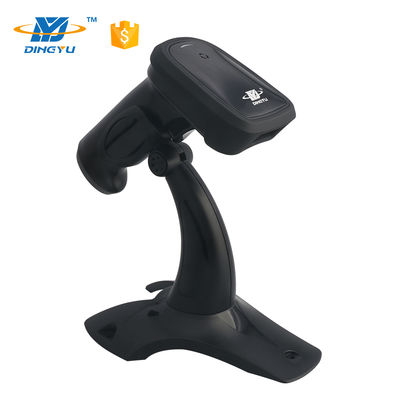

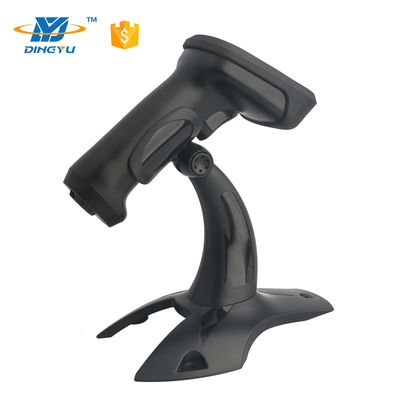

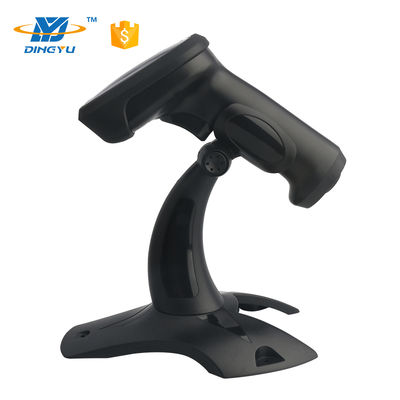

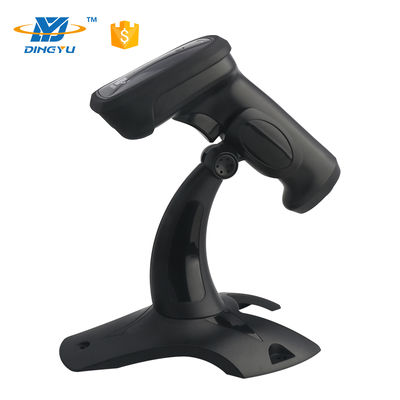

Product Images

Frequently Asked Questions

Q: How do you ensure product quality?

A: As a professional manufacturer with 18 years of experience, we implement rigorous quality control including wire bend tests (1 million cycles), button durability tests (1 million presses), and comprehensive pre-shipment testing. All products meet CE, FCC, and ROHS certifications.

Q: What is the warranty period?

A: We provide a 12-month warranty for all our barcode scanners.

Q: Do I need to install drivers?

A: No drivers are required. Our scanners support plug-and-play functionality across Windows, Mac OS, iOS, Linux, UNIX, and Android systems.

Q: Do you offer OEM/ODM services?

A: Yes, we provide OEM services including custom branding and packaging. Our technical team supports ODM development for specialized requirements.
