Name: Cord/Wired Handheld 2D Barcode Scanner with 300 scans/sec Speed 640*480 Resolution and 3mil Reading Ability for Retail Logistics Supermarket
Brand: Shenzhen DYscan Technology Co., Ltd
Price: 40.00 USD
Availability: InStock

होम उत्पाद 2 डी बारकोड स्कैनर

Cord/Wired Handheld 2D Barcode Scanner with 300 scans/sec Speed 640*480 Resolution and 3mil Reading Ability for Retail Logistics Supermarket

उत्पाद विवरण:

भुगतान & नौवहन नियमों:

न्यूनतम आदेश मात्रा:	1

संपर्क करें

विस्तृत उत्पाद विवरण

प्रतिरूप संख्या।:	DS5220-2D	इंटरफ़ेस प्रकार:	USB
स्कैन गति:	300 स्कैन/सेकंड	स्कैन तत्व:	सीएमओएस
संकल्प:	640*480	पढ़ने की क्षमता:	3mil
डिकोडिंग गति:	65 सेमी/से	क्षेत्र की गहराई:	20मिमी~530मिमी
स्कैन विधा:	मैनुअल, ऑटो सेंस, निरंतर	प्रकाश स्रोत:	रेड लाइट एलईडी 525±10nm
CPU:	32-बिट	देखने के क्षेत्र:	क्षैतिज 40°× ऊर्ध्वाधर 30°
वज़न:	≈159.6 ग्राम (केबल के बिना)	आयाम:	लंबाई68.4मिमी * चौड़ाई170.6मिमी * ऊंचाई87.6मिमी
बिजली की आपूर्ति:	DC5V इनपुट, स्टैंडबाय करंट: 50mA, डिकोडिंग करंट:180mA
प्रमुखता देना:	300 scans/sec 2D Barcode Scanner , 640*480 Resolution Handheld Barcode Scanner , 3mil Reading Ability QR Code Scanner

DS5220-2D Corded 2D Barcode Scanner

Professional-Grade Scanner for Retail, Logistics, and Industrial Applications

The DS5220-2D is a high-performance wired handheld barcode scanner featuring advanced CMOS image recognition technology. Designed for versatile use across multiple industries, it efficiently reads barcodes from paper, products, screens, and other media surfaces.

Key Features

Ergonomic design for comfortable extended use
High-speed decoding of all mainstream 1D & 2D barcodes
Powerful 32-bit processor with fast scanning capability (3mil resolution)
Multi-language and system compatibility
Dual interface options: USB and RS232
Ideal for supermarkets, warehouses, mobile payments, and chain stores

Technical Specifications

Performance Parameters

Scan Type	CMOS
Light Source	Red Light LED 525±10nm (aim), 5600K LED (Lighting)
CPU	32-bit
Resolution	640*480 (global exposure)
Minimum Resolution	≥3mil/0.076mm (PCS90%, CODE 39)
Decoding Speed	65CM/S
Depth of Field	20mm~530mm
Scan Modes	Manual, Auto Sense, Continuous
Prompt Method	LED indicator, buzzer
Field of View	Horizontal 40° × Vertical 30°
Scan Angle	Roll±360°, Pitch±60°, Skew±55°
Supported Systems	Windows, Mac OS, IOS, Linux, Unix, Android

Physical Parameters

Weight	≈159.6g (without cable)
Dimensions	L68.4mm × W170.6mm × H87.6mm
Communication Mode	USB
Power Supply	DC5V input, Standby current:50mA, Decoding current:180mA

Environmental Specifications

Operating Temperature	-20ºC to 55ºC
Storage Temperature	-20ºC to 60ºC
Humidity	5% to 95% (non-condensing)
Drop Height	1.5m

Supported Barcode Symbologies

1D Barcodes	Codabar, Code39, Code32, Interleaved 2 of 5 (ITF25), Industrial 2 of 5, Matrix 2 of 5, Code93, Code11, Code128, Gs1-128, UPC-A, UPC-E, EAN/JAN-8, EAN/JAN-13, ISBN, ISSN, GS1 databar, GS1 databar limited, GS1 databar expanded, ISBT
2D Barcodes	PDF417, Micro PDF417, QR Code, Micro QR, Data Matrix, Aztec

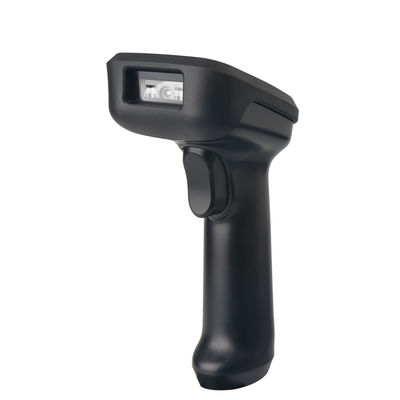

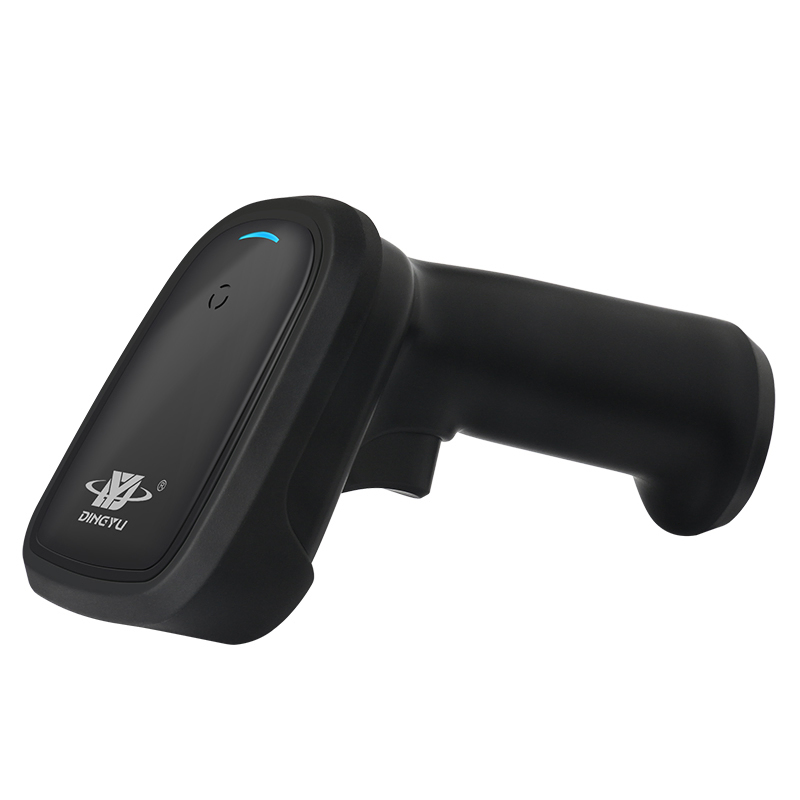

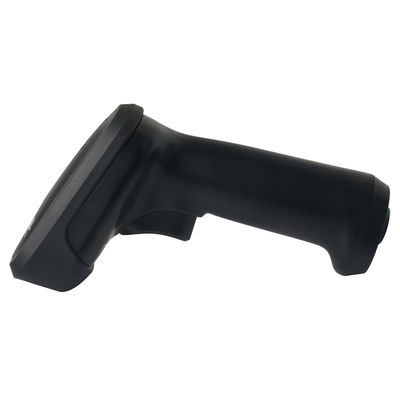

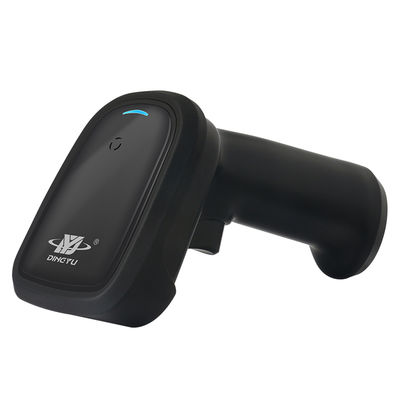

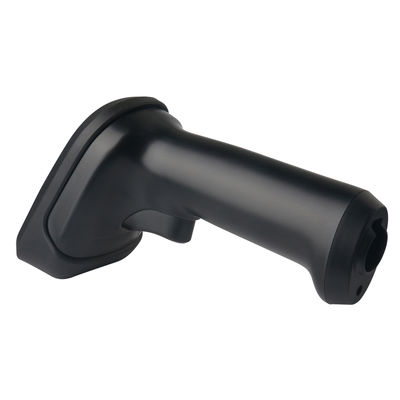

Product Images

Frequently Asked Questions

How do you ensure the high quality of your barcode scanners?

As a professional manufacturer with 18 years of experience, we maintain strict quality control with dedicated testing equipment including engine age tests, wire bend machines, switch life tests, and shock resistance tests. All our scanners are CE, FCC, and ROHS certified.

What is your quality control process?

We conduct rigorous testing including 1 million wire bend tests and 1 million button press tests. Every device undergoes thorough inspection before shipment.

What is the warranty period?

12 months warranty from date of purchase.

Do I need to install drivers?

No, our scanners support plug-and-play functionality with no driver installation required. Compatible with Windows, Mac OS, IOS, Linux, UNIX, and Android systems.
