Name: Wired USB 2D Barcode Scanner with 300 scans/sec Speed and 4mil Resolution for Supermarket and Retail Use
Brand: Shenzhen DYscan Technology Co., Ltd
Price: 40.00 USD
Availability: InStock

होम उत्पाद 2 डी बारकोड स्कैनर

Wired USB 2D Barcode Scanner with 300 scans/sec Speed and 4mil Resolution for Supermarket and Retail Use

उत्पाद विवरण:

भुगतान & नौवहन नियमों:

न्यूनतम आदेश मात्रा:	1

संपर्क करें

विस्तृत उत्पाद विवरण

प्रतिरूप संख्या।:	डीएस2806-2डी	इंटरफ़ेस प्रकार:	USB, rs232
स्कैन गति:	300 स्कैन/सेकंड	स्कैन तत्व:	सीएमओएस
संकल्प:	4mil	CPU:	32-बिट
डिकोडिंग गति:	25सीएम/एस	क्षेत्र की गहराई:	35mm-300mm
स्कैन कोण:	रोल±360°, पिच±50°, तिरछा±50°	वज़न:	≈170 ग्राम
DIMENSIONS:	लंबाई163.5मिमी * चौड़ाई65.0मिमी * ऊंचाई89.5मिमी	बिजली की आपूर्ति:	डीसी 5V@80MA (काम)
परिचालन तापमान:	-20 toC से 55ºC	भंडारण तापमान:	-20 toC से 60ºC
नमी:	5% से 95% (गैर-कंडेनसिंग)
प्रमुखता देना:	300 scans/sec 2D Barcode Scanner , 4mil QR Code Reader , Wired USB Handheld Barcode Scanner

DS2806-2D Wired USB RS232 2D Handheld Barcode Scanner

The DS2806-2D is a high-performance 2D wired barcode scanner featuring advanced CMOS image recognition technology. Capable of reading barcodes from paper, goods, screens, and other media surfaces. Ideal for manufacturing, warehousing, logistics, healthcare, retail chains, mobile payments, express delivery, inventory management, food traceability, and asset inventory applications.

Key Features

Ergonomic design for comfortable extended use
Reads all mainstream 1D and 2D barcodes with ease
High-performance processor enables fast decoding (4mil resolution)
Supports multiple languages and operating systems
Dual interface options: USB and RS232
Widely compatible with supermarket POS, warehouse management, mobile payment systems, and chain store operations

Technical Specifications

Performance Parameters

Scan Type	CMOS
Light Source	Red aim light, white fill light
CPU	32-bit
Resolution	640*480
Minimum Resolution	≥4mil/0.1mm (PCS90%, CODE 39)
Decoding Speed	25CM/S
Depth of Field	35mm-300mm
Scan Mode	Manual, Auto Sense, Continuous
Indicator	LED, Buzzer
Scan Angle	Roll±360°, Pitch±50°, Skew±50°
Print Contrast Signal	≥25%
Ambient Light	Dark environment, indoor natural light

Supported Symbologies

1D Barcodes	Codabar, Code39, Code32, Interleaved 2 of 5 (ITF25), Industrial 2 of 5, Matrix 2 of 5, Code93, Code11, Code128, Gs1-128, UPC-A, UPC-E, EAN/JAN-8, EAN/JAN-13, ISBN, ISSN, GS1 databar, GS1 databar limited, GS1 databar expanded, ISBT
2D Barcodes	PDF417, Micro PDF417, QR Code, Micro QR, Data Matrix, Aztec

Physical Parameters

Weight	≈170g (USB)
Dimensions	L163.5mm × W65.0mm × H89.5mm
Interface Type	USB
Power Supply	DC 5V@80mA (work)
IP Rating	IP42
Supported Systems	Windows, Mac OS, IOS, Linux, Unix, Android

Environmental Specifications

Operating Temperature	-20ºC to 55ºC
Storage Temperature	-20ºC to 60ºC
Humidity	5% to 95% (non-condensing)
Drop Height	1.5m
Temperature Test	30 minutes for high temp (60ºC), 30 minutes for low temp (-20ºC)
Transport Vibration Test	10H@125RPM

Standard Accessories

Cable	USB, connects the scanner to a host device and provides charging
Receiver	Used to receive and transmit scanner data

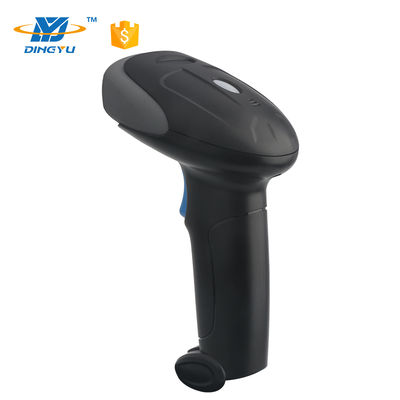

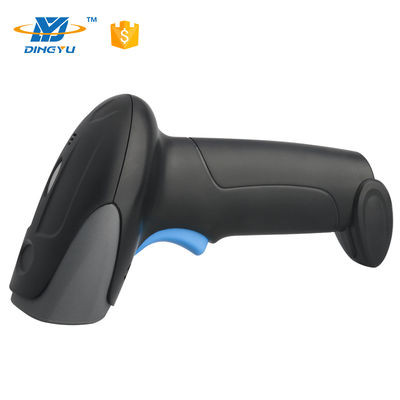

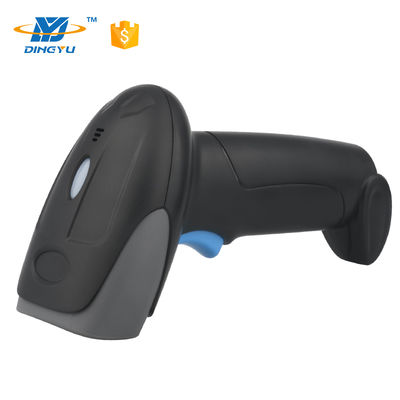

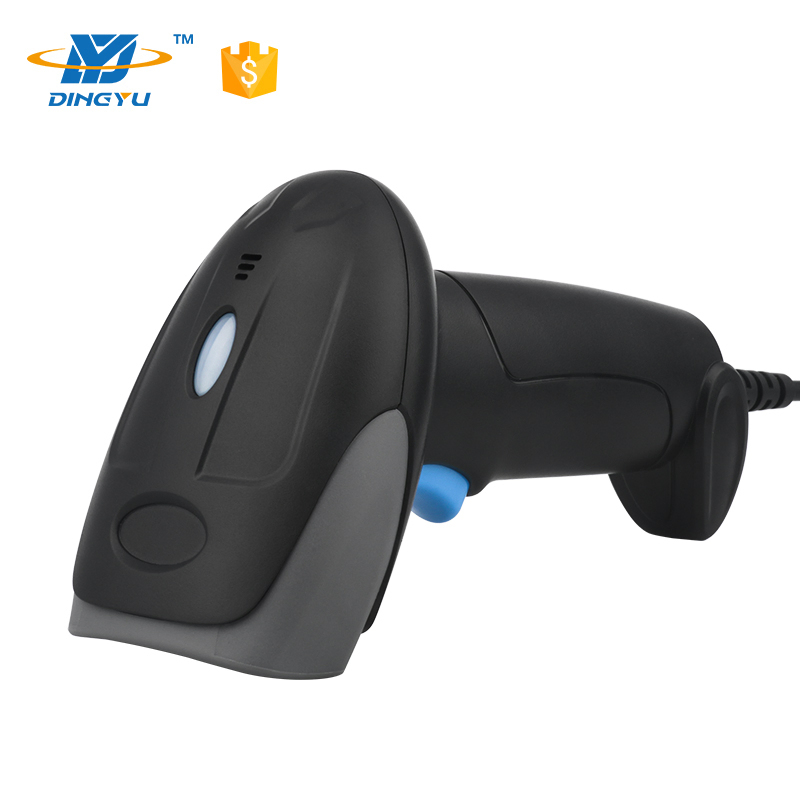

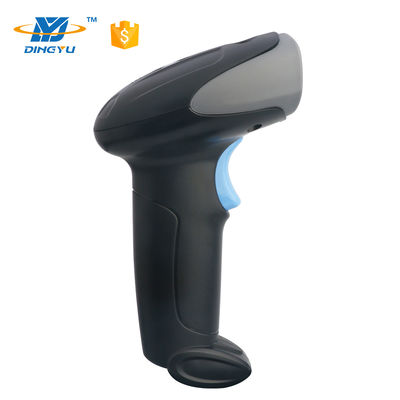

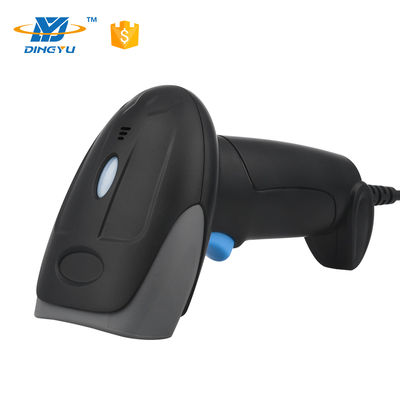

Product Images

Frequently Asked Questions

Q1: How do you ensure the high quality of your barcode scanners?

DYscan is a professional manufacturer and developer of barcode scanners with 18 years of field experience. We maintain a professional QC team and utilize advanced testing equipment including engine age tests, wire bend machines, switch life tests, and shock resistance tests. All our barcode scanners pass CE, FCC, and ROSH certifications.

Q2: What is your quality control process?

We conduct rigorous testing including wire bend tests for 1 million cycles, button tests for 1 million presses, and comprehensive device testing before shipment.

Q3: What is the warranty period for your barcode scanners?

We provide a 12-month warranty for all our barcode scanners.

Q4: How do you maintain stable performance?

We implement flow line production throughout the manufacturing process. Each product undergoes at least four quality tests before delivery.

Q5: Do you offer OEM or ODM services?

Yes, we provide OEM services including custom branding, packaging, and documentation. Our technical team also supports ODM services for specialized requirements.

Q6: What are your company's strengths?

As a professional scanner manufacturer, we maintain dedicated departments for R&D, production, and marketing/sales, each led by experienced directors to ensure product excellence and customer satisfaction.

Q7: Do I need to install drivers for this scanner?

No, our scanners support plug-and-play functionality without requiring driver installation. They are compatible with Windows, Mac OS, IOS, Linux, UNIX, and Android systems.
