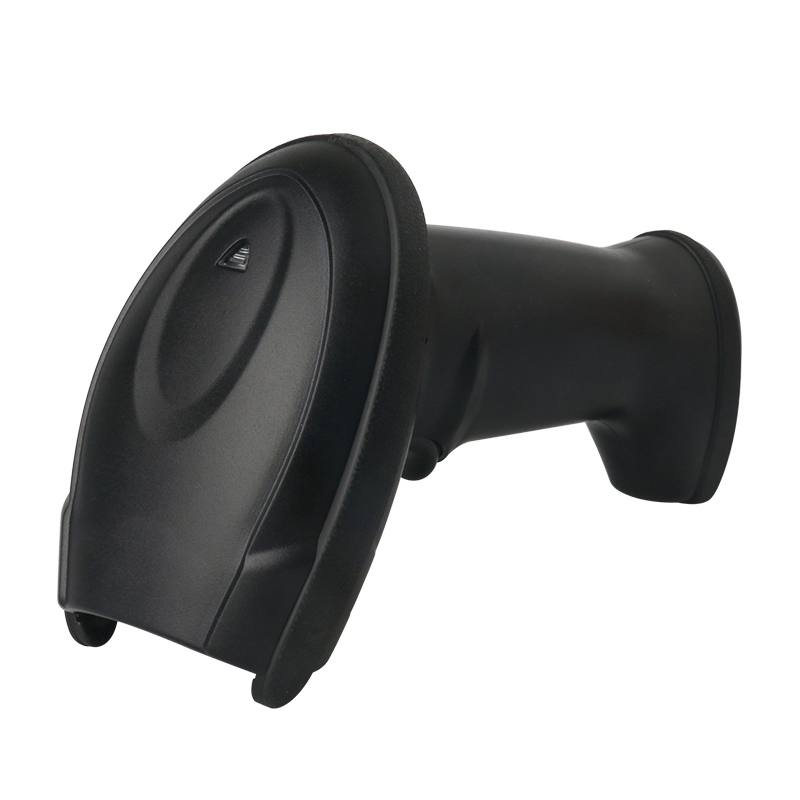

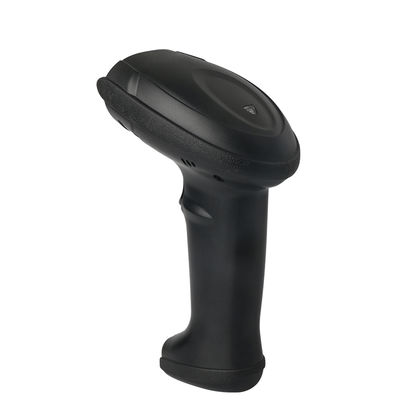

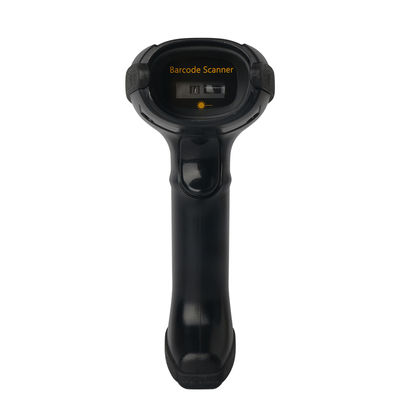

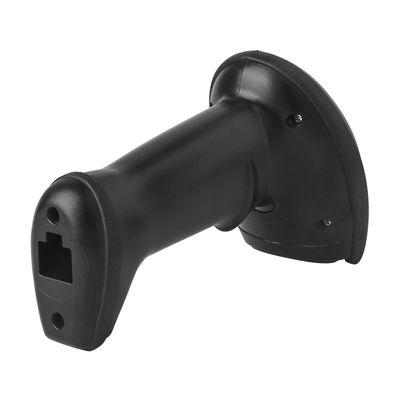

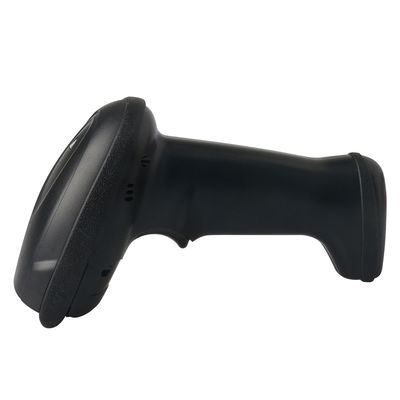

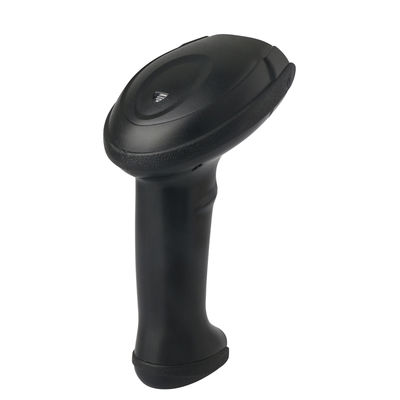

Name: Wired Handheld 2D Barcode Scanner with 640*480 Resolution 30-600mm Depth of Field and 32 Bit CPU for POS Terminal
Brand: Shenzhen DYscan Technology Co., Ltd
Price: 15 USD
Availability: InStock

होम उत्पाद 2 डी बारकोड स्कैनर

Wired Handheld 2D Barcode Scanner with 640*480 Resolution 30-600mm Depth of Field and 32 Bit CPU for POS Terminal

उत्पाद विवरण:

भुगतान & नौवहन नियमों:

न्यूनतम आदेश मात्रा:	1
मूल्य:	15

संपर्क करें

विस्तृत उत्पाद विवरण

प्रतिरूप संख्या।:	DS5900-2D	इंटरफ़ेस प्रकार:	USB
स्कैन तत्व:	सीएमओएस	कैमरा संकल्प:	640*480
बारकोड संकल्प:	3mil code39	क्षेत्र की गहराई:	30-600 मिमी
स्कैन विधा:	मैनुअल, सतत, ऑटो स्कैन	मुद्रण:	15%
CPU:	32 बिट	केबल लंबाई:	1.5 मीटर
वज़न:	160g	बिजली की आपूर्ति:	डीसी 5वी 200एमए
परिचालन तापमान:	-20 से 55 डिग्री	भंडारण तापमान:	-40 से 60 डिग्री
DIMENSIONS:	L165.5 मिमी * W63.5 मिमी * H92.3 मिमी
प्रमुखता देना:	640*480 Resolution 2D Barcode Scanner , 30-600mm Depth of Field Handheld Barcode Scanner , 32 Bit CPU QR Code Scanner

1D 2D QR Code Wired Scanner Handheld POS Terminal Barcode Scanner

The DS5900-2D is a durable wired 2D handheld barcode scanner with excellent fall resistance. It efficiently reads barcodes from various surfaces including paper, goods, and digital screens. Ideal for multiple industries including manufacturing, warehousing, logistics, healthcare, retail, mobile payments, and inventory management.

Product Specifications

Parameter	Specification
Scan Type	CMOS
Light Source	Red Light LED 525±10nm (aim), 5600K LED (Lighting) Note: Global exposure camera with automatic brightness adjustment
CPU	32-bit
Resolution	640*480
Minimum Resolution	≥3mil/0.1mm (PCS90%, CODE 39)
Decoding Speed	65CM/S
Depth of Field	30-600mm
Scan View	41° * 31°
Scan Mode	Manual, Continuous, Auto Sense
Scan Angle	Roll: ±360°, Pitch: ±60°, Yaw: ±55°
Print Contrast Signal	≥15%
Ambient Light	Dark environment, indoor natural light
Supported Symbologies	1D: UPC-A, UPC-E, EAN-8, EAN-13, Code 128, GS1-128, Code 39, Code 32, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Standard 2 of 5, Codabar, MSI, GS1 Databar, China Post, Tepepen, Febraban, GS1 Composite, Japan Post 2D: QR Code, Micro QR Code, Data Matrix, PDF417, Micro PDF 417, MaxiCode, Aztec, HanXin Code
Weight	≈160g (without cable)
Dimensions	165.5mm (L) × 63.5mm (W) × 92.3mm (H)
Interface Type	USB
Cable Length	1.8m
Power Supply	DC5V input, decoding current: 200mA
Operating Temperature	-20ºC to 55ºC
Storage Temperature	-40ºC to 60ºC
Humidity	5% to 95% (non-condensing)
Drop Height	1.5m
Temperature Test	30 minutes for high temp. (60ºC), 30 minutes for low temp. (-20ºC)
Transport Vibration Test	10H@125RPM
