Name: Handheld 2D Barcode Scanner with RS232 Interface 65cm/S Decoding Speed and 20mm~530mm Depth of Field
Brand: Shenzhen DYscan Technology Co., Ltd
Price: 40.00 USD
Availability: InStock

होम उत्पाद 2 डी बारकोड स्कैनर

Handheld 2D Barcode Scanner with RS232 Interface 65cm/S Decoding Speed and 20mm~530mm Depth of Field

उत्पाद विवरण:

भुगतान & नौवहन नियमों:

न्यूनतम आदेश मात्रा:	1

संपर्क करें

विस्तृत उत्पाद विवरण

प्रतिरूप संख्या।:	DS5220-2D	इंटरफ़ेस प्रकार:	USB
स्कैन गति:	300 स्कैन/सेकंड	स्कैन तत्व:	सीएमओएस
संकल्प:	640*480	पढ़ने की क्षमता:	3mil
डिकोडिंग गति:	65 सेमी/से	क्षेत्र की गहराई:	20मिमी~530मिमी
स्कैन विधा:	मैनुअल, ऑटो सेंस, निरंतर	प्रकाश स्रोत:	रेड लाइट एलईडी 525±10nm(उद्देश्य), 5600K एलईडी (लाइटिंग)
CPU:	32-बिट	देखने के क्षेत्र:	क्षैतिज 40°× ऊर्ध्वाधर 30°
वज़न:	159.6 ग्राम	आयाम:	लंबाई68.4मिमी * चौड़ाई170.6मिमी * ऊंचाई87.6मिमी
बिजली की आपूर्ति:	DC5V इनपुट, स्टैंडबाय करंट: 50mA, डिकोडिंग करंट:180mA
प्रमुखता देना:	RS232 2D Barcode Scanner , 65cm/S Decoding Speed Handheld Barcode Scanner , 20mm~530mm Depth of Field QR Code Scanner

Handheld 2D Automatic Barcode Scanner USB RS232 CMOS Barcode Scanner

Product Overview

The DS5220-2D is a wired 2D handheld barcode scanner featuring advanced CMOS image recognition technology. It efficiently reads barcodes from paper, goods, screens, and other media surfaces. Ideal for manufacturing, warehousing, logistics, healthcare, retail chains, mobile payments, and inventory management applications.

Key Features

Ergonomic design for comfortable operation
Reads all mainstream 1D & 2D barcodes with ease
High-performance processor for fast decoding (3mil resolution)
Supports multiple languages and operating systems
Dual interface options: USB and RS232
LED indicator and buzzer for operation feedback

Technical Specifications

Performance Parameters

Scan Type	CMOS
Light Source	Red Light LED 525±10nm (aim), 5600K LED (Lighting)
CPU	32-bit
Resolution	640*480 (global exposure)
Minimum Resolution	≥3mil/0.076mm (PCS90%, CODE 39)
Decoding Speed	65CM/S
Depth of Field	20mm~530mm
Scan Modes	Manual, Auto Sense, Continuous
Field of View	Horizontal 40° × Vertical 30°
Supported Systems	Windows, Mac OS, IOS, Linux, Unix, Android

Physical Parameters

Weight	≈159.6g (without cable)
Dimensions	L68.4mm × W170.6mm × H87.6mm
Interface	USB
Power Supply	DC5V input, Standby current: 50mA, Decoding current: 180mA

Environmental Specifications

Operating Temperature	-20ºC to 55ºC
Storage Temperature	-20ºC to 60ºC
Humidity	5% to 95% (non-condensing)
Drop Height	1.5m

Depth of Field Specifications

Barcode Type	Barcode Density	Nearest	Furthest
Code 39	0.1mm (4mil)	50mm	75mm
Code 39	0.25mm (10mil)	30mm	200mm
Code 39	1mm (40mil)	115mm	530mm
UPC/EAN	0.33mm (13mil)	40mm	260mm
QR Code	20.0mil	20mm	165mm

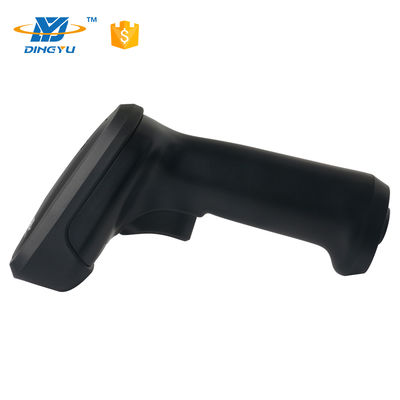

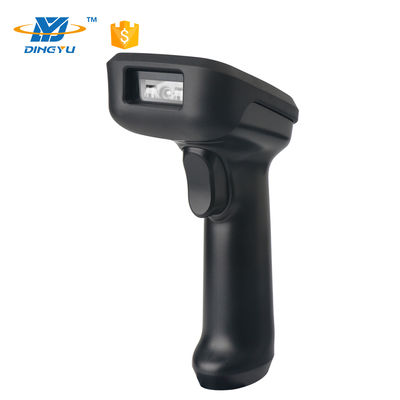

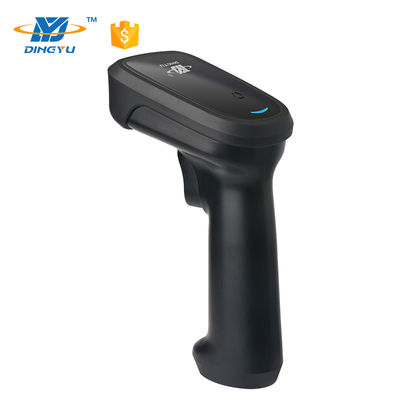

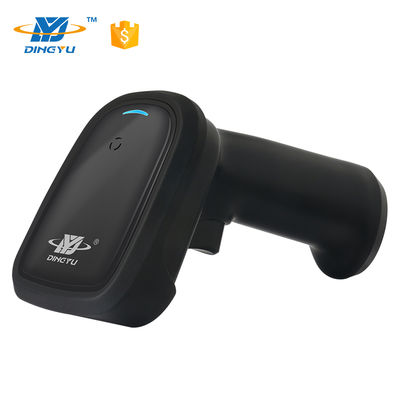

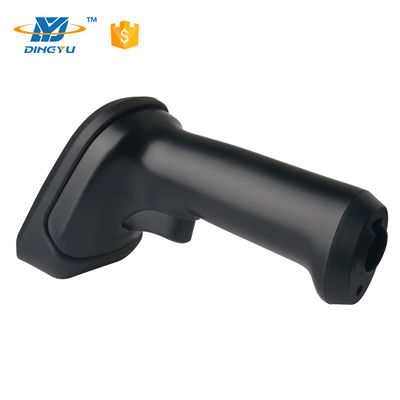

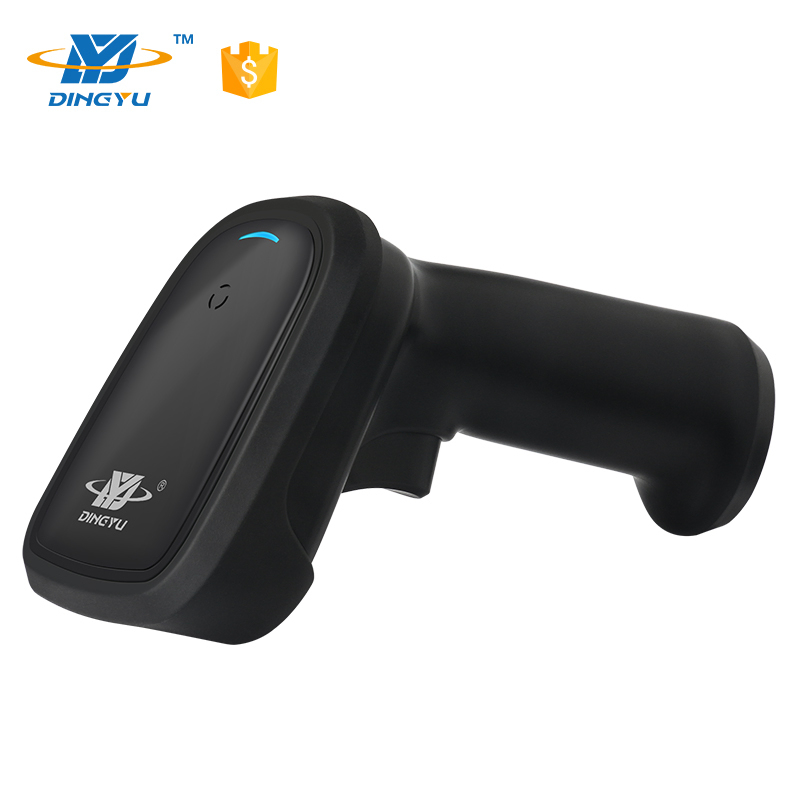

Product Images

Frequently Asked Questions

How do you ensure the high quality of your barcode scanners?

We are professional manufacturers with 18 years of field experience. Our quality control includes professional testing machines (engine age test, wire bend machine, switch life test, shock resistance test) and all products pass CE, FCC, ROHS certifications.

What is your warranty period?

12 months warranty for all barcode scanners.

Do I need to install drivers?

No, our scanners support plug-and-play functionality and are compatible with Windows, Mac OS, IOS, Linux, UNIX, and Android systems without requiring additional drivers.
