Name: Super Mini 2D Barcode Scanner Module with 640*480 Resolution and 25cm/S Scan Speed for 1D and 2D Code Support
Brand: Shenzhen DYscan Technology Co., Ltd
Price: 10 USD
Availability: InStock

होम उत्पाद बारकोड स्कैन इंजन

Super Mini 2D Barcode Scanner Module with 640*480 Resolution and 25cm/S Scan Speed for 1D and 2D Code Support

उत्पाद विवरण:

भुगतान & नौवहन नियमों:

न्यूनतम आदेश मात्रा:	1
मूल्य:	10

संपर्क करें

विस्तृत उत्पाद विवरण

प्रतिरूप संख्या।:	DE2120	इंटरफ़ेस प्रकार:	USB
स्कैन गति:	25सीएम/एस	स्कैन तत्व:	सीएमओएस
छवि संवेदक:	640*480	स्कैन विधा:	ऑटो स्कैन, निरंतर
मुद्रण:	25%	बिजली की आपूर्ति:	डीसी 3.3V, 160mA कार्य
इंटरफ़ेस:	यूएसबी, टीटीएल	एफएफसी केबल:	5 सेमी
ऊंचाई:	1.2 मीटर	DIMENSIONS:	21.2मिमी16.0मिमी12.0मिमी
वज़न:	<4 ग्राम	परिचालन तापमान:	-20 toC से 50ºC
भंडारण तापमान:	-40 .C से 70ºC
प्रमुखता देना:	640*480 Resolution 2D Barcode Scanner Module , 25cm/S Scan Speed Barcode Scan Engine , 1D and 2D Code Support Embedded Barcode Scanner

Super Mini 2D Barcode Scanner Module with Type C Interface Phone Mate Barcode Scanner

The DE2120 is a compact embedded barcode scanner module featuring advanced CMOS image recognition technology and an intelligent image recognition system. This versatile scanner supports universal 1D and 2D barcodes across various media including paper, goods, and digital screens.

Key Features

Supports USB and TTL interfaces for flexible integration
Compact design ideal for OEM products including handheld devices and barcode collectors
High-performance scanning of both 1D and 2D barcodes
Multiple scanning modes including manual, continuous, and auto-sense

Technical Specifications

Parameter	Specification
Scan Type	CMOS
Light Source	Red Light LED 625±10nm (aim), 5600K LEDs (Lighting)
CPU	32-bit
Resolution	640*480
Reading Precision	≥4mil/0.1mm (PCS90%, Code 39)
Decoding Speed	25CM/S
Depth of Field	25mm-400mm
Scan Angle	Pitch: ±45° \| Roll: ±360° \| Skew: ±40°
Weight	<4g
Dimensions	21.2mm × 16.0mm × 12.0mm (L×W×H)

Environmental Specifications

Operating Temperature: -20ºC to 50ºC

Storage Temperature: -40ºC to 70ºC

Humidity: 5% to 95% (non-condensing)

Drop Height: 1.2m

Supported Symbologies

1D Codes: UPC-A, UPC-E, EAN-8, EAN-13, Code 128, GS1-128, Code 39, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Strande 2 of 5, Codabar (NW-7), MSI Plessey, GS1 Databar (RSS), China Post

2D Codes: QR Code, Data Matrix, PDF417, Micro PDF 417, Aztec

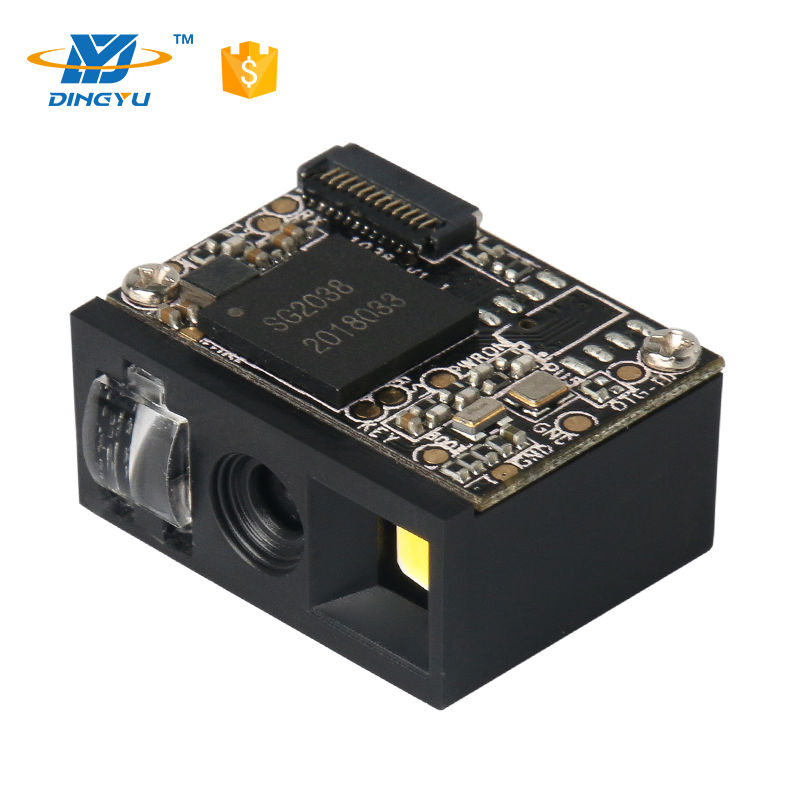

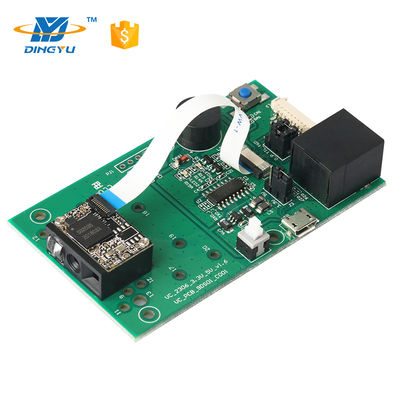

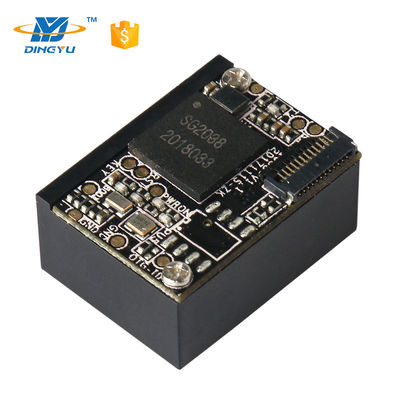

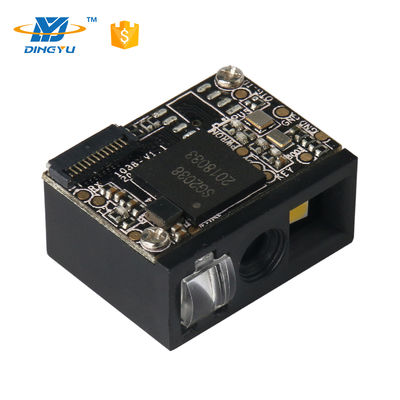

Product Images
