OEM 2D Barcode Scanner Module with 1 Year Warranty Drop Height 1.2m and DC 3.3V Power Supply

उत्पाद विवरण:

भुगतान & नौवहन नियमों:

न्यूनतम आदेश मात्रा:	1
मूल्य:	10

संपर्क करें

विस्तृत उत्पाद विवरण

प्रतिरूप संख्या।:	DE2120	इंटरफ़ेस प्रकार:	यूएसबी, टीटीएल
स्कैन गति:	25सीएम/एस	स्कैन तत्व:	सीएमओएस
छवि संवेदक:	640*480	मुद्रण:	25%
बिजली की आपूर्ति:	डीसी 3.3V, 160mA	एफएफसी केबल:	5 सेमी
ऊंचाई:	1.2 मीटर	DIMENSIONS:	21.2मिमी16.0मिमी12.0मिमी
प्रकाश स्रोत:	रेड लाइट एलईडी 625±10nm	CPU:	32-बिट
सटीकता पढ़ना:	≥4mil/0.1mm	क्षेत्र की गहराई:	25मिमी-400मिमी
वज़न:	<4 ग्राम
प्रमुखता देना:	1 Year Warranty Barcode Scanner Module , Drop Height 1.2m QR Code Scanner Module , DC 3.3V Power Supply Barcode Scan Engine

OEM 2D Barcode Scanner Module USB Output QR Code Scanner Module

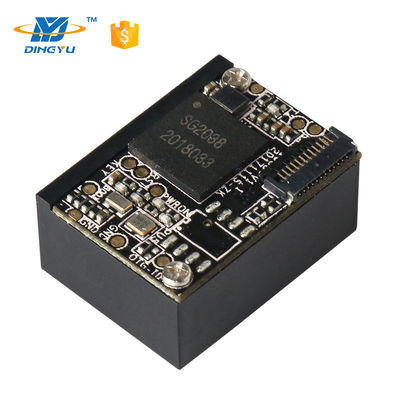

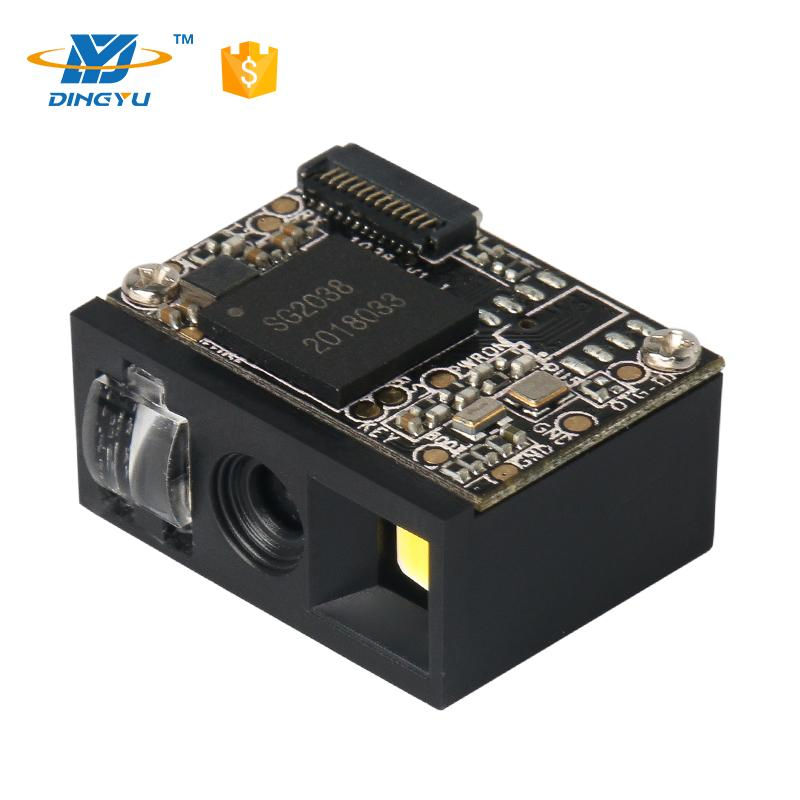

The DE2120 is a practical embedded barcode scanner module featuring leading CMOS image recognition technology and an intelligent image recognition system. This versatile module can scan universal 1D and 2D barcodes from various surfaces including paper, goods, screens, and other media.

With support for USB and TTL interfaces, it can be easily integrated into various OEM products including handheld devices, portable equipment, fixed installations, and barcode collectors.

Product Specifications

Scan Type	CMOS
Light Source	Red Light LED 625±10nm(aim), 5600K LEDs(Lighting)
CPU	32-bit
Resolution	640*480
Reading Precision	≥4mil/0.1mm(PCS90%,Code 39)
Decoding Speed	25CM/S
Depth of Field	25mm-400mm
Scan Mode	Manual, Continuous, Auto Sense, command control
Scan Angle	Test Conditions: CODE39,10mil/0.25mm,PCS90% Pitch: ±45° Roll: ±360° Skew: ±40°
Print Contrast Signal	≥25%
Ambient Light	Dark environment, indoor natural light
Symbologies	1D: UPC-A, UPC-E, EAN-8, EAN-13, Code 128, GS1-128, Code 39, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Strande 2 of 5, Codabar(NW-7), MSI Plessey, GS1 Databar(RSS), China Post, etc. 2D: QR Code, Data Matrix, PDF417, Micro PDF 417, Aztec, etc.
Weight	<4g
Dimensions	(L)21.2mm × (W)16.0mm × (H)12.0mm
Communication Mode	USB(USB-KBW, USB-COM), TTL
Interface Type	FFC 12PIN Pitch 0.5
Power Supply	DC 3.3V @160mA(Work)
Operating Temperature	-20ºC to 50ºC
Storage Temperature	-40ºC to 70ºC
Humidity	5% to 95%(non-condensing)
Drop Height	1.2m
Temperature Test	30 minutes for high Temp., 30 minutes for low Temp. High Temp.: 60ºC Low Temp.: -20ºC
Transport Vibration Test	10H@125RPM

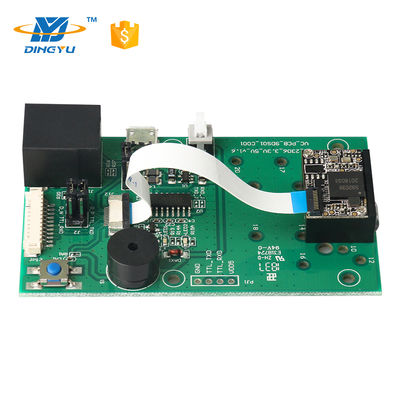

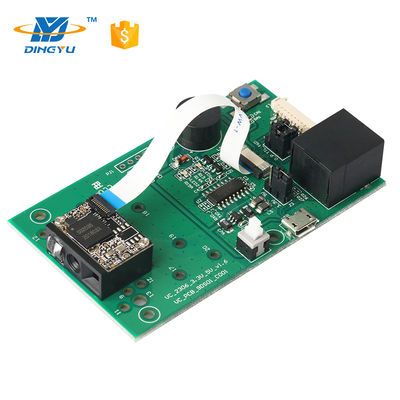

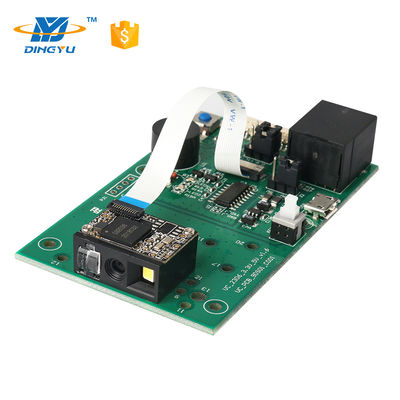

Product Images

Packaging & Shipping

Frequently Asked Questions

Q1: How do you ensure the high quality of your barcode scanners?

DYscan is a professional manufacturer and developer of barcode scanners with 18 years of field experience. We have a professional QC team and testing equipment including engine age tests, wire bend machines, switch life tests, and shock resistance tests. All our barcode scanners pass CE, FCC, and ROHS certifications.

Q2: What quality control measures do you implement?

We conduct wire bend tests 1 million times, button tests 1 million times, and all devices are thoroughly tested before shipment.

Q3: What is the warranty period for your barcode scanners?

12 months warranty.

Q4: How do you maintain stable performance?

We use flow line production throughout the manufacturing process. Every product is tested at least 4 times before delivery.

Q5: Do you offer OEM or ODM services?

We provide OEM services including custom logos, color boxes, and user manuals. Our technical team also supports ODM services.

Q6: What are your company's strengths?

As a professional scanner manufacturer, we have specialized departments for R&D, production, testing, marketing, sales, and customer service, each led by experienced directors.

Q7: Do I need to install drivers?

No drivers are required. Our scanners support plug-and-play functionality and are compatible with Windows, Mac OS, iOS, Linux, UNIX, and Android systems.
