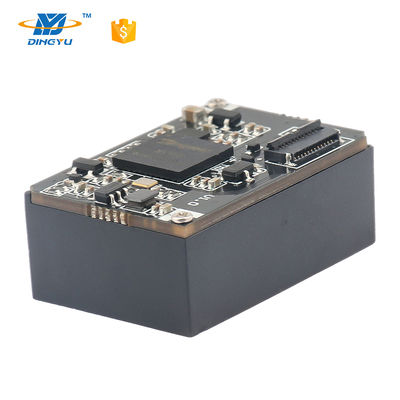

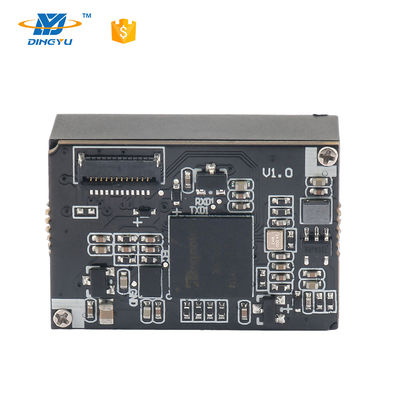

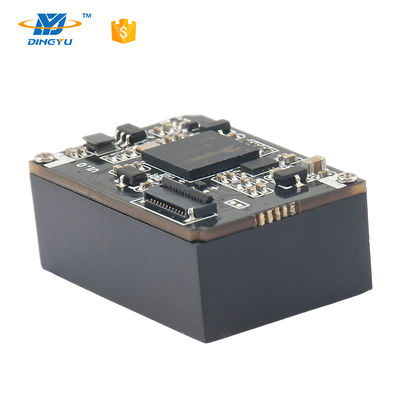

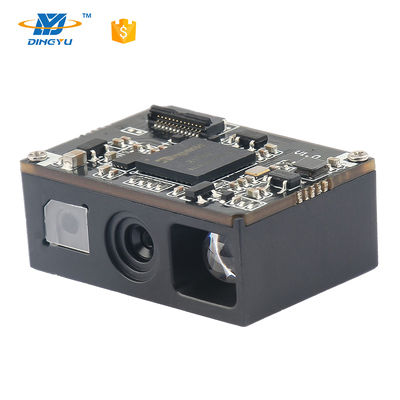

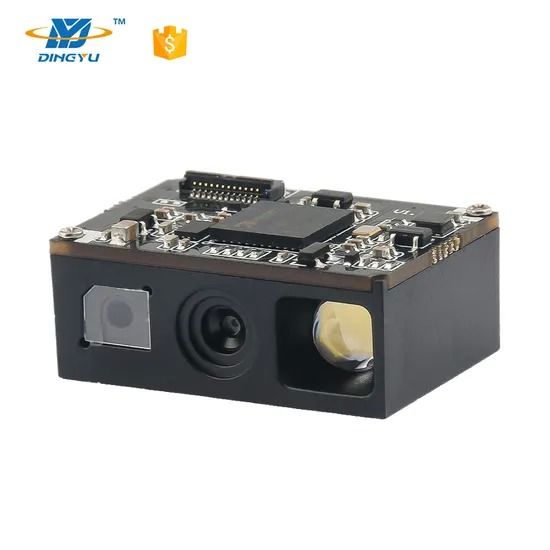

Mini 2D Barcode Scan Engine with 5.5g Weight and 70-750mm Depth of Field for Embedded Applications

Mini 2D Barcode Scan Engine with 5.5g Weight and 70-750mm Depth of Field for Embedded Applications

  • Mini 2D Barcode Scan Engine with 5.5g Weight and 70-750mm Depth of Field for Embedded Applications
  • Mini 2D Barcode Scan Engine with 5.5g Weight and 70-750mm Depth of Field for Embedded Applications
  • Mini 2D Barcode Scan Engine with 5.5g Weight and 70-750mm Depth of Field for Embedded Applications
  • Mini 2D Barcode Scan Engine with 5.5g Weight and 70-750mm Depth of Field for Embedded Applications
  • Mini 2D Barcode Scan Engine with 5.5g Weight and 70-750mm Depth of Field for Embedded Applications
  • Mini 2D Barcode Scan Engine with 5.5g Weight and 70-750mm Depth of Field for Embedded Applications
Mini 2D Barcode Scan Engine with 5.5g Weight and 70-750mm Depth of Field for Embedded Applications
उत्पाद विवरण:
भुगतान & नौवहन नियमों:
न्यूनतम आदेश मात्रा: 1
मूल्य: 25
संपर्क करें
विस्तृत उत्पाद विवरण
प्रतिरूप संख्या।: DE2690D इंटरफ़ेस प्रकार: USB
स्कैन गति: 65 सेमी/से स्कैन तत्व: सीएमओएस
संकल्प: 3mil/0.076 मिमी छवि संवेदक: 1280*480
बिजली की आपूर्ति: डीसी 3.3V, 220mA वज़न: 5.5 ग्राम
DIMENSIONS: 28.3 मिमी एल* 19.1 मिमी डब्ल्यू * 12.0 मिमी एच क्षेत्र की गहराई: 70-750 मिमी
प्रकाश स्रोत: सफेद एलईडी, लाल एलईडी CPU: ARM32-बिट
परिचालन तापमान: -20 toC से 55ºC भंडारण तापमान: -40 .C से 70ºC
नमी: 5% से 95%
प्रमुखता देना:

Mini Barcode Scan Engine

,

5.5g Weight Barcode Scan Engine

,

70-750mm Depth of Field 2D Barcode Module

Mini 2D Barcode Scan Engine with 5.5g Weight and 70-750mm Depth of Field for Embedded Applications 0
OEM ODM Mini OCR Passport ID Card Embedded Barcode Scanner 2D Wired Module
A compact and versatile 2D barcode scanner module designed for embedded applications, featuring OCR capabilities for passport and ID card reading.
Mini 2D Barcode Scan Engine with 5.5g Weight and 70-750mm Depth of Field for Embedded Applications 1
Technical Specifications
Parameter Value
Weight 5.5g (without cable)
Size 28.3mm L × 19.1mm W × 12.0mm H
Interface USB, USB-com (requires driver), TTL
(USB protocol: Full Speed, USB 2.0)
Light Source White LED (auto brightness adjustment), Red aiming LED (525nm wavelength)
CMOS 1280×800 resolution
CPU ARM 32-bit
Resolution 1D: ≥3mil
Depth of Field 70-750mm (varies by barcode type)
Scan Modes Manual, Auto, Continuous, Command control
Reading Angles Roll: ±360°, Pitch: ±60°, Yaw: ±55°
Motion Tolerance 65cm/s
Power Requirements 3.3V, 220mA (Work), 120mA (Standby), 40mA (Sleep)
Operating Temperature -20°C to 55°C
Storage Temperature -40°C to 70°C
Humidity 5% to 95% (non-condensing)
Supported Symbologies
1D Barcodes:
  • UPC-A, UPC-E, EAN-8, EAN-13
  • Code 128, GS1-128, Code 39, Code 93
  • Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5
  • Codabar (NW-7), MSI, GS1 Databar
  • China Post, Tepepen, Febraban, GS1 Composite
2D Barcodes:
  • QR Code, Micro QR Code
  • Data Matrix, PDF417, Micro PDF417
  • MaxiCode, Aztec, HanXin Code
Mini 2D Barcode Scan Engine with 5.5g Weight and 70-750mm Depth of Field for Embedded Applications 2 Mini 2D Barcode Scan Engine with 5.5g Weight and 70-750mm Depth of Field for Embedded Applications 3 Mini 2D Barcode Scan Engine with 5.5g Weight and 70-750mm Depth of Field for Embedded Applications 4 Mini 2D Barcode Scan Engine with 5.5g Weight and 70-750mm Depth of Field for Embedded Applications 5
Certifications
Mini 2D Barcode Scan Engine with 5.5g Weight and 70-750mm Depth of Field for Embedded Applications 6
Company Profile
Mini 2D Barcode Scan Engine with 5.5g Weight and 70-750mm Depth of Field for Embedded Applications 7
Exhibition
Mini 2D Barcode Scan Engine with 5.5g Weight and 70-750mm Depth of Field for Embedded Applications 8
