Name: DS5220B-1D USB Barcode Scanner 300 Scans/Sec for Retail Warehouse
Brand: Shenzhen DYscan Technology Co., Ltd
Price: 40.00 USD
Availability: InStock

होम उत्पाद -1 डी बारकोड स्कैनर

DS5220B-1D USB Barcode Scanner 300 Scans/Sec for Retail Warehouse

उत्पाद विवरण:

भुगतान & नौवहन नियमों:

न्यूनतम आदेश मात्रा:	1

संपर्क करें

विस्तृत उत्पाद विवरण

प्रतिरूप संख्या।:	DS5220B-1D	इंटरफ़ेस प्रकार:	USB
स्कैन गति:	300 स्कैन/सेकंड	स्कैन तत्व:	सीएमओएस
संकल्प:	2500	सटीकता पढ़ना:	3mil
डिकोडिंग गति:	300 बार/सेकंड	क्षेत्र की गहराई:	20 मिमी ~ 680 मिमी
स्कैन विधा:	मैनुअल, निरंतर, ऑटो सेंस, फ्लैशिंग, कंट्रोल	त्वरित पद्धति:	एलईडी संकेतक, बजर
आयाम:	लंबाई68.4मिमी * चौड़ाई170.6मिमी * ऊंचाई87.6मिमी	मुद्रण:	20%
परिवेश प्रकाश:	अंधेरा वातावरण, इनडोर प्राकृतिक प्रकाश	वज़न:	160.8g
बिजली की आपूर्ति:	डीसी 5V@80MA (काम)
प्रमुखता देना:	USB barcode scanner for retail , 1D barcode scanner 300 scans/sec , warehouse barcode scanner with USB

Handheld 1D Wireless 2.4G Barcode Scanner

High-Performance CCD Barcode Scanner for Large Supermarkets

The DS5220-1D is a high-performance 1D barcode scanner featuring advanced CCD image recognition technology. It efficiently reads barcodes from various surfaces including paper, goods, and digital screens. Ideal for manufacturing, warehousing, logistics, healthcare, retail chains, mobile payments, and inventory management applications.

Key Features

Ergonomic design for comfortable extended use
Reads all mainstream 1D barcodes with ease
High-performance processor enables fast decoding (3mil resolution)
Supports multiple languages and operating systems
USB interface for universal connectivity
Wide application in supermarkets, warehouses, and chain stores

Technical Specifications

Performance

Scan Type	Linear CCD
Light Source	Visible red light, 625±10nm
CPU	32-bit
Resolution	2500
Reading Precision	≥3mil/0.076mm (PCS90%, Code 39)
Decoding Speed	300 times/second
Depth of Field	20mm~680mm
Scan Modes	Manual, Continuous, Auto Sense, Flashing, Control Command
Prompt Method	LED indicator, buzzer
Scan Angle	Pitch: ±60°, Roll: ±30°, Skew: ±60°
Supported Symbologies	UPC-A, UPC-E, EAN-8, EAN-13, Code 128, GS1-128, Code 39, Code 93, Interleaved 2 of 5, and more

Physical Parameters

Weight	≈160.8g (without cable)
Dimensions	68.4mm × 170.6mm × 87.6mm
Communication Mode	USB, USB-COM
Power Supply	DC 5V@80mA (work)

Environmental Specifications

Operating Temperature	-20ºC to 50ºC
Storage Temperature	-40ºC to 60ºC
Humidity	5% to 95% (non-condensing)

Accessories

USB Cable for connecting to host devices
RS232 Cable with USB supply cable

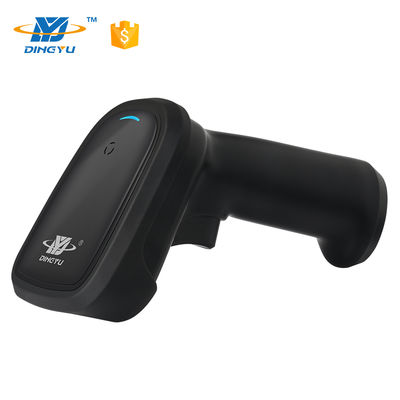

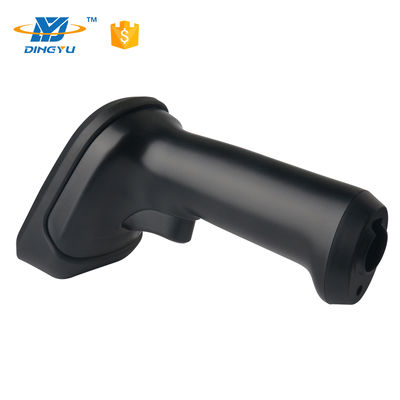

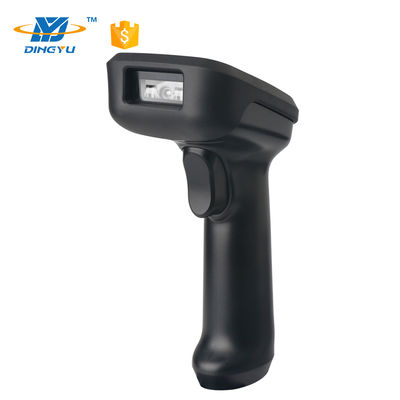

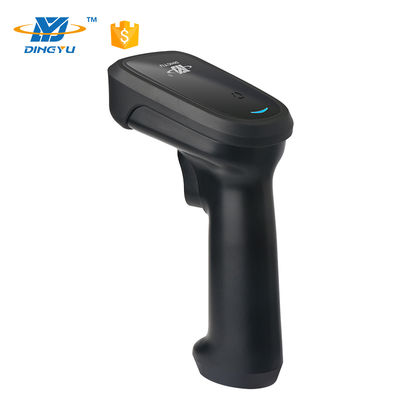

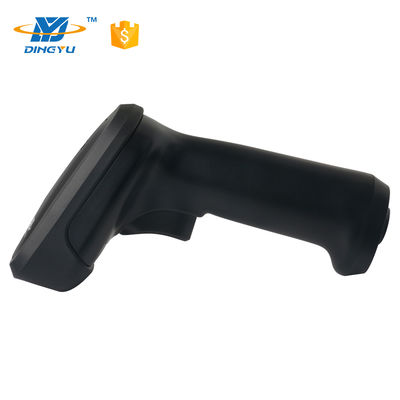

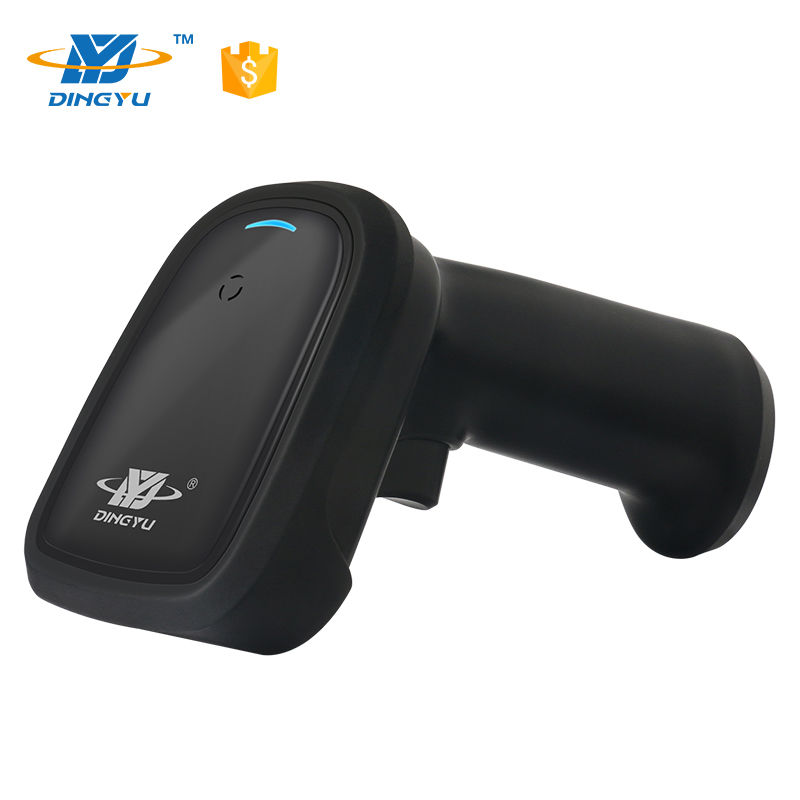

Product Images

Frequently Asked Questions

Q1: How do you ensure the high quality of your barcode scanners?

DYscan: As professional manufacturers with 18 years of experience, we maintain rigorous quality control including engine age tests, wire bend tests, and switch life tests. All products pass CE, FCC, and ROHS certifications.

Q2: What is your quality control process?

DYscan: We conduct 1 million wire bend tests and button tests. Every device undergoes thorough testing before shipment.

Q3: What is the warranty period?

DYscan: 12 months warranty.

Q4: How do you maintain stable performance?

DYscan: Our assembly line production ensures consistency. Each product undergoes at least 4 tests before delivery.

Q5: Do you offer OEM/ODM services?

DYscan: Yes, we provide OEM services including custom branding and packaging. Our technical team supports ODM development.

Q6: Are drivers required?

DYscan: No drivers needed. Our scanners support plug-and-play operation with Windows, Mac OS, Linux, Android, and other systems.
